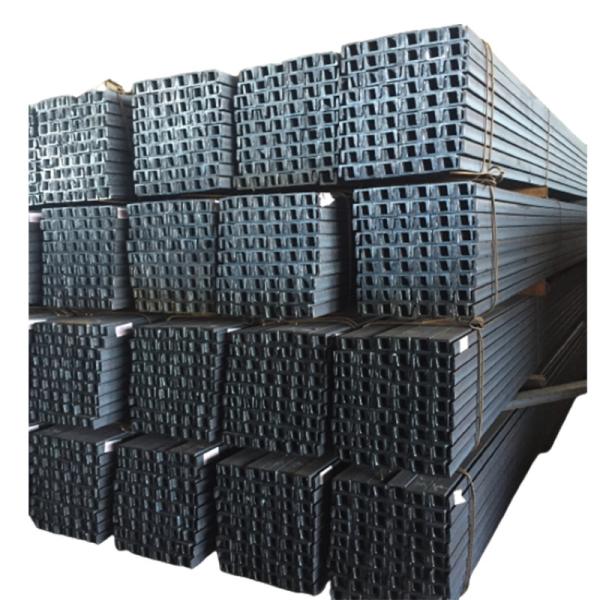

4.5-12.5mm Hot Rolled Carbon Steel U Channel GB/T3091 GB/T13793

hot rolled carbon steel U channel steel black Carbon Steel Channels

4.5-12.5mm Hot Rolled Carbon Steel U Channel GB/T3091 GB/T13793

Carbon steel is an iron-carbon alloy with a carbon content of 0.0218% to 2.11%. Also called carbon steel. Generally contains a small amount of silicon, manganese, sulfur, phosphorus. Generally, the higher the carbon content in carbon steel, the greater the hardness and the higher the strength, but the lower the plasticity.

Standard	GB/T3091-2001,GB/T13793-92, ISO630/E235B/JIS G3101/JIS G3131/JIS G3106/
Material	Q235, Q345, SS400,S235JR,S355JR etc
Size	80x40x4.5mm- 380x110x4.0mm,75x40mm-150x75mm
Technique	Hot rolled
Thickness	4.5-12.5mm
Length	6-12m or as per your request.
Application	Using for ship building,construction,car manufacture,industry structure etc
Package	Bundle with firm steel straps or wire rod,easy for loading and unloading. Standard seaworthy package or as customer request
Surface	Galvanized,Paint,Black mild channel steel

4.5-12.5mm Hot Rolled Carbon Steel U Channel GB/T3091 GB/T13793

ndard Size

size	Height (MM)	Width (MM)	web Thk (MM)	weight (KG/M)	Size	Height (MM)	width (MM)	web Thk (MM)	weight (KG/M)
5	50	37	4.5	5.438	36b	360	98	11	53.466
6.3	63	40	4.8	6.634	36c	360	100	13	59.118
6.5	65	40	4.8	6.709	40a	400	100	10.5	58.928
8	8o	43	5	8.045	40b	400	102	12.5	65.204
10	100	48	5.3	10.007	40c	400	104	14.5	71.488
12	120	53	5.5	12.059
12.6	126	53	5.5	12.318		50	25	4	3.46
14a	140	58	6	14.535		50	25	5	3.86
14b	140	60	8	16.733		250	9o	9	34.6
16a	160	63	6.5	17.24		75	40	3.8	5.3
16b	160	65	8.5	19.752		75	40	5	6.92
18a	180	68	7	20.174		76	38	5.1	6.7
18b	180	70	9	23		100	50	3.8	7.3
20a	200	73	7	22.64		100	50	5	9.36
20b	200	75	9	25.777		102	51	6.1	10.42
22a	220	77	7	24.999		125	65	6	13.4
22b	220	79	9	28.453		127	64	6.4	14.9
25a	250	78	7	27.41		150	75	6.5	18.6
25b	250	80	9	31.335		150	75	9	24
25c	250	82	11	35.26		152	76	6.4	17.9
28a	280	82	7.5	31.427		152	89	7.1	23.8
28b	280	84	9.5	35.823		200	80	7.5	24.6
28c	280	86	11.5	40.219		250	9o	9	34.6
30a	300	85	7.5	34.463		300	9o	9	38.1
30b	300	87	9.5	39.173		300	9o	10	43.8
30c	300	89	11.5	43.883		125	65	5.5	14.8
36a	360	96	g	47.814		150	75	5.5	17.9Workshop Display

ackaging and Shipment

Application

U channel are used for shipbuilding,construction,car manufacturer,industry structure etc
